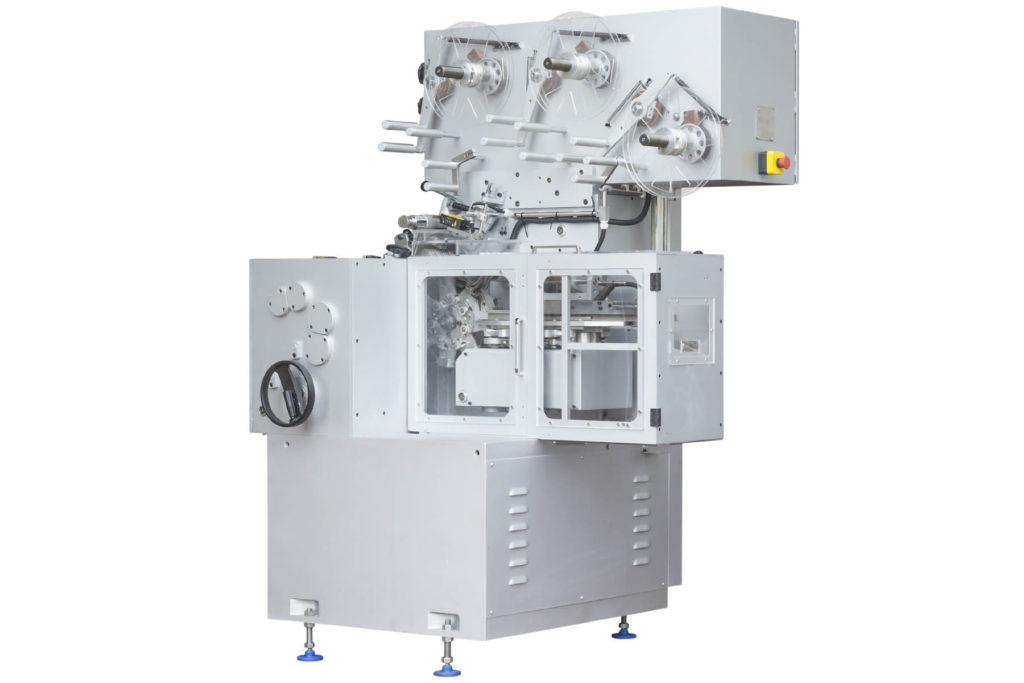

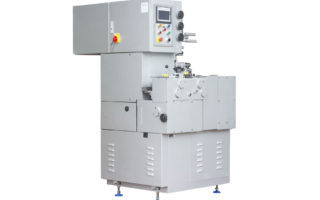

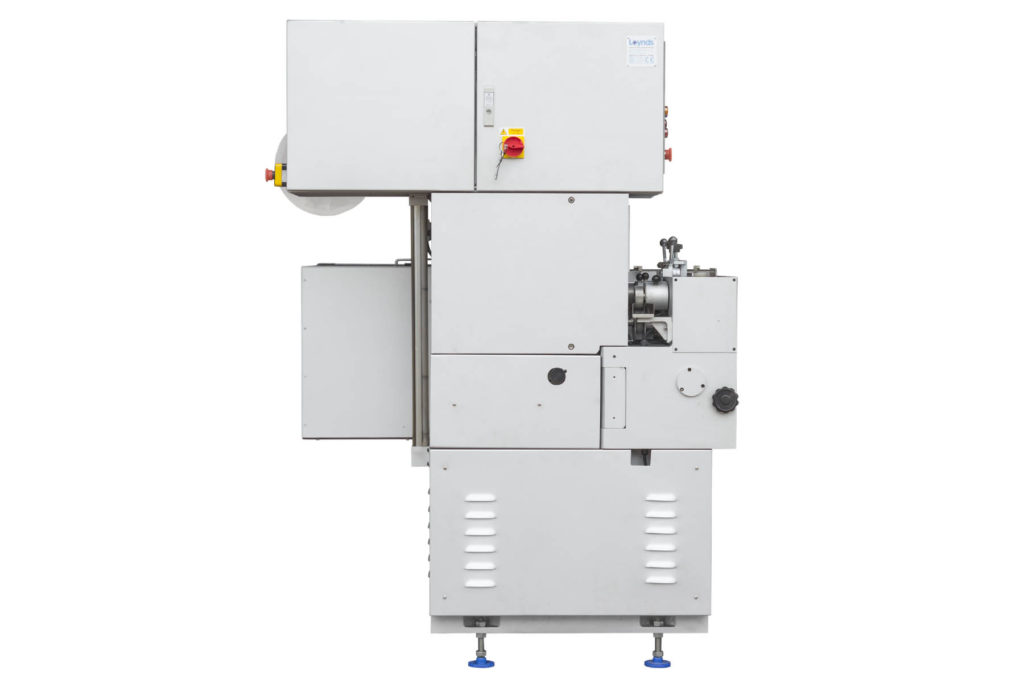

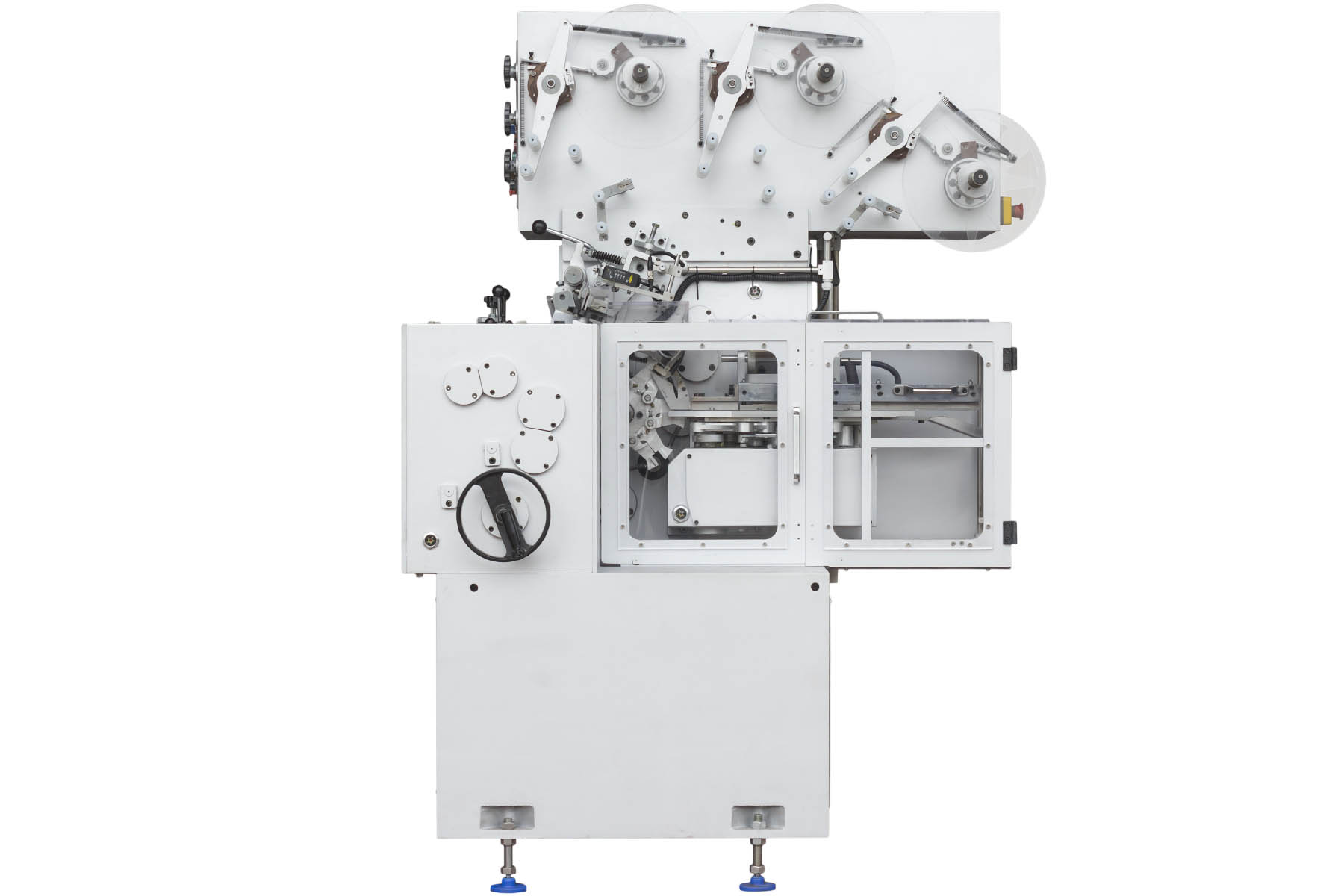

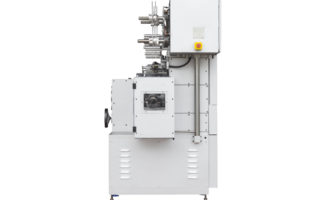

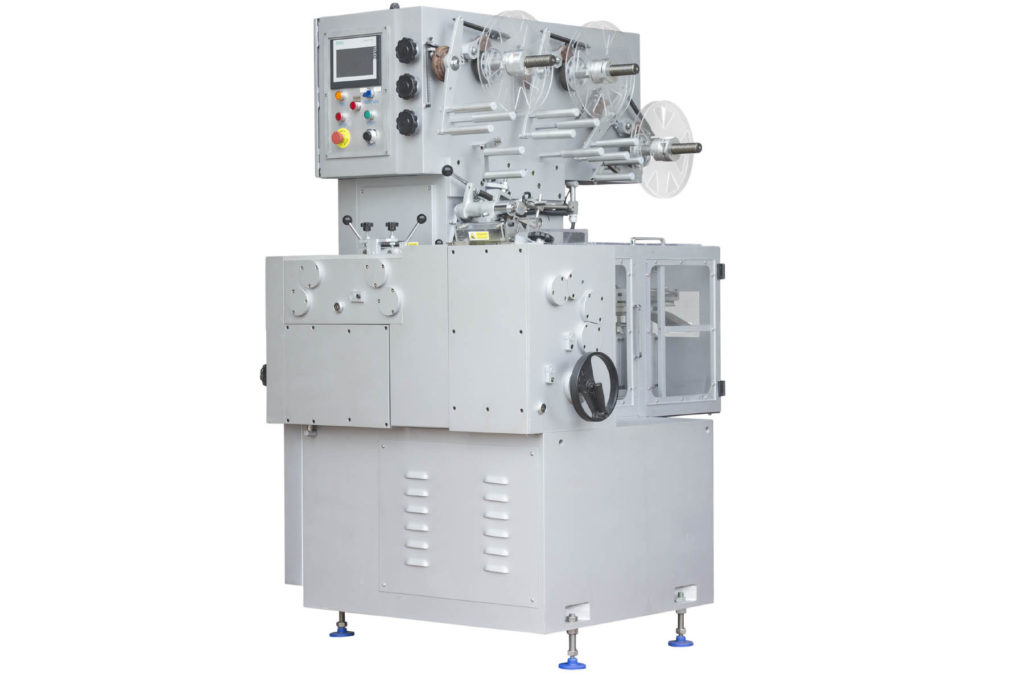

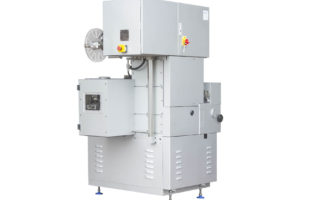

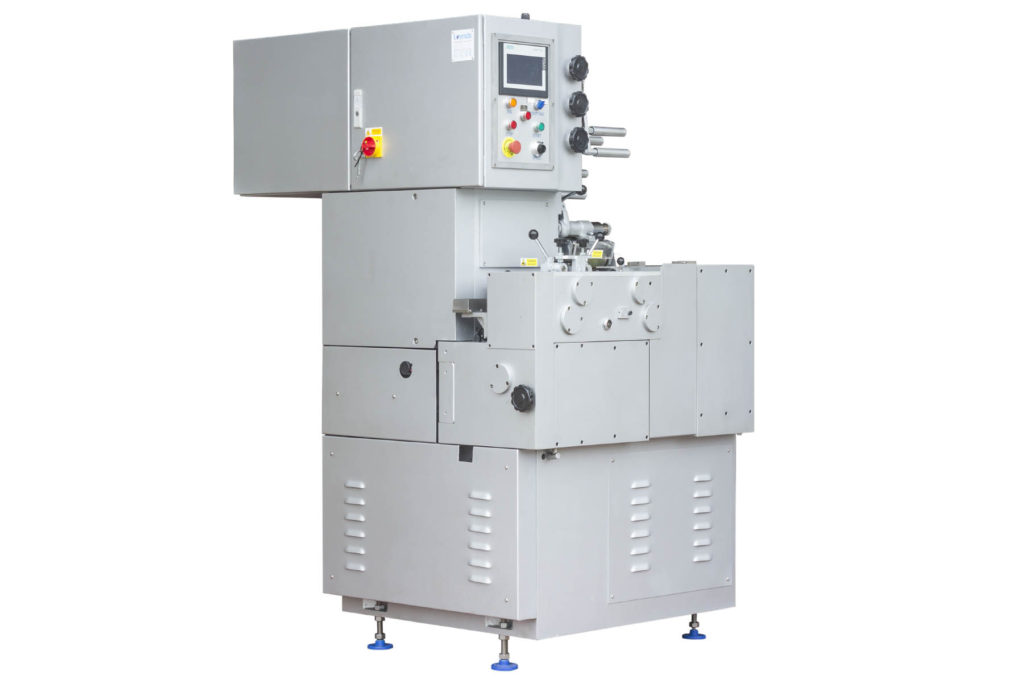

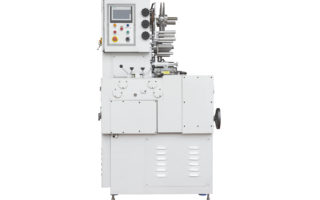

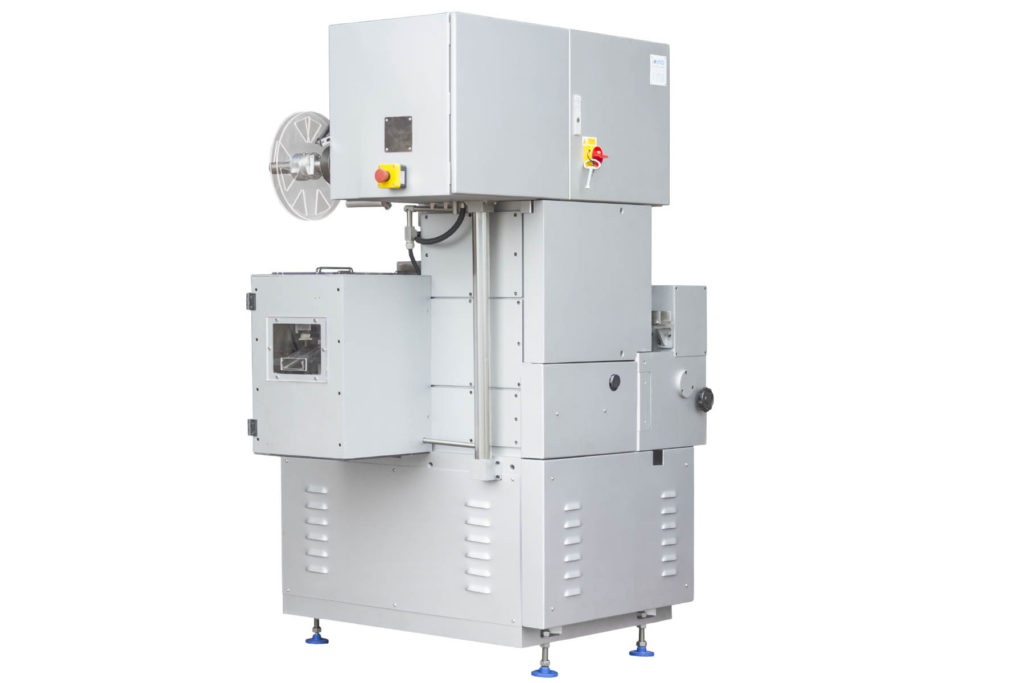

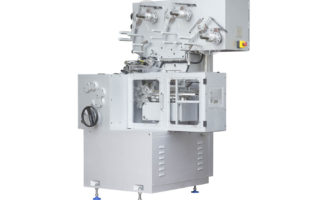

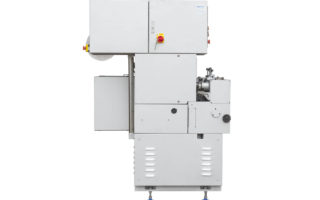

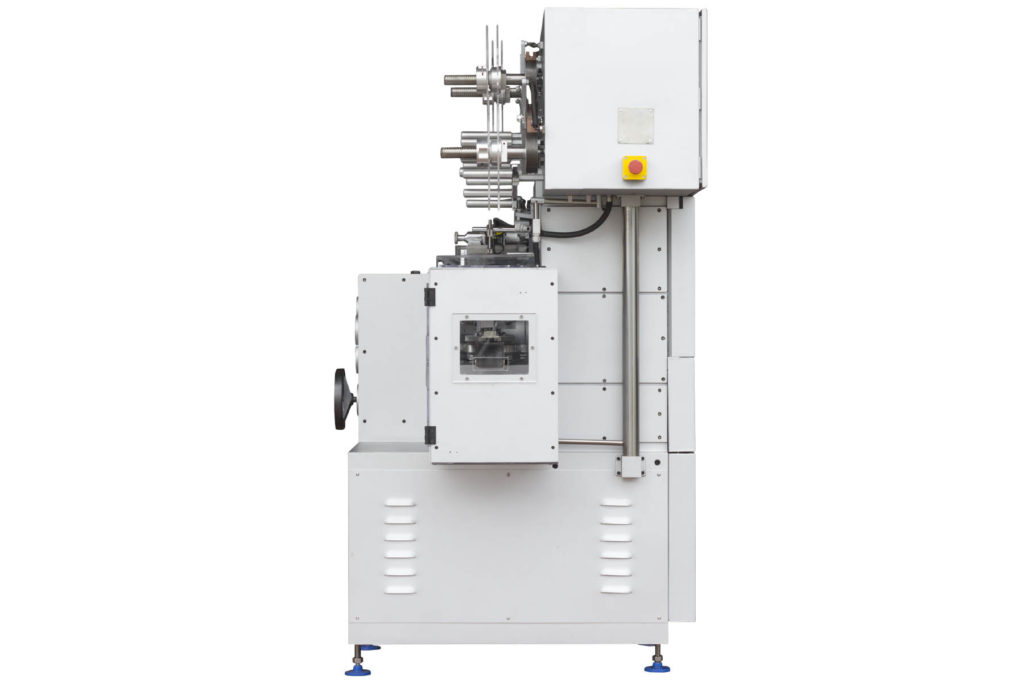

The Loynds CW01 is a high-speed cut and fold wrapping machine inspired by the robust Nagema W5 series. This machine is the heart of candy production, shaping and packaging your gum or candy products at up to 450 pieces per minute.

Why Choose the Loynds CW01?

• Versatility at Its Core: Whether you’re producing toffee, fruit chews, bubble gum, or high-boiled sugar candies, the CW01 is capable of manufacturing them all.
• Tailored to Your Production Line: We custom-build to your preferred candy size and shape. The machine is designed to run seamlessly with your Batch Roller/Rope Sizer or extruder.
• Efficient Design: Optimized for low maintenance and ease of operation, the CW01 is built for durability and consistent performance.
• Intelligent Operations: An advanced PLC system ensures minimal wrapper wastage, synchronizing paper feed with product flow perfectly.
• Precision Wrapping: Equipped with photocells for exact print registration, the CW01 ensures each piece is wrapped to perfection.

Technical Specifications:

• Variable Speed Control: 0 – 450Pcs per minute
• Customizable Size Format: The machine is manufactured to your size format. Change parts can be supplied for multiple sizes
• Power Consumption: Operates efficiently at 3.5kW.
• Dimensions: (L)1430mm x (W)1035mm x (H)1810 mm.
• Weight: 1300kg.

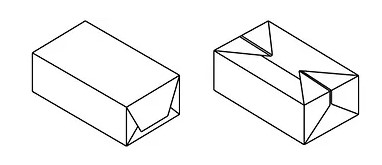

• Wrap Styles: single point end fold or double point end fold.
• Tripe film roll holder: for products with a double wrap and for quick changeover
• Products: Toffee, Fruit Chews, Bubble Gum, or High-Boiled Sugar Candies
• Material: Cast Steel, Painted, Contact parts food grade steels

Operation Sequence

Your confectionery rope (typically supplied from a batch roller and rope sizer) enters our CW01 machine, passing through a set of sizing rollers that shape the piece to its final width and thickness. A sensor detects the rope, cueing the PLC to initiate the precise paper feeding. A servo motor cuts the paper to length, readying it for the wrapping wheel where the confectionery is enveloped in a ‘fold wrap’ style wrap. The wrapping film is sealed with a heated plate which is pressed against the wrap.

Alternative Model

We also supply a Cut and Double Twist Wrapping Model.
