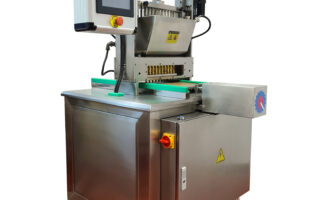

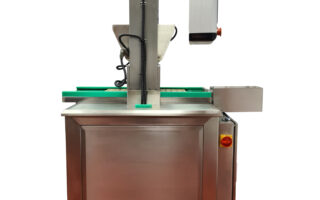

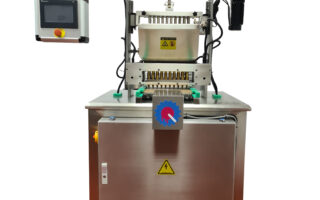

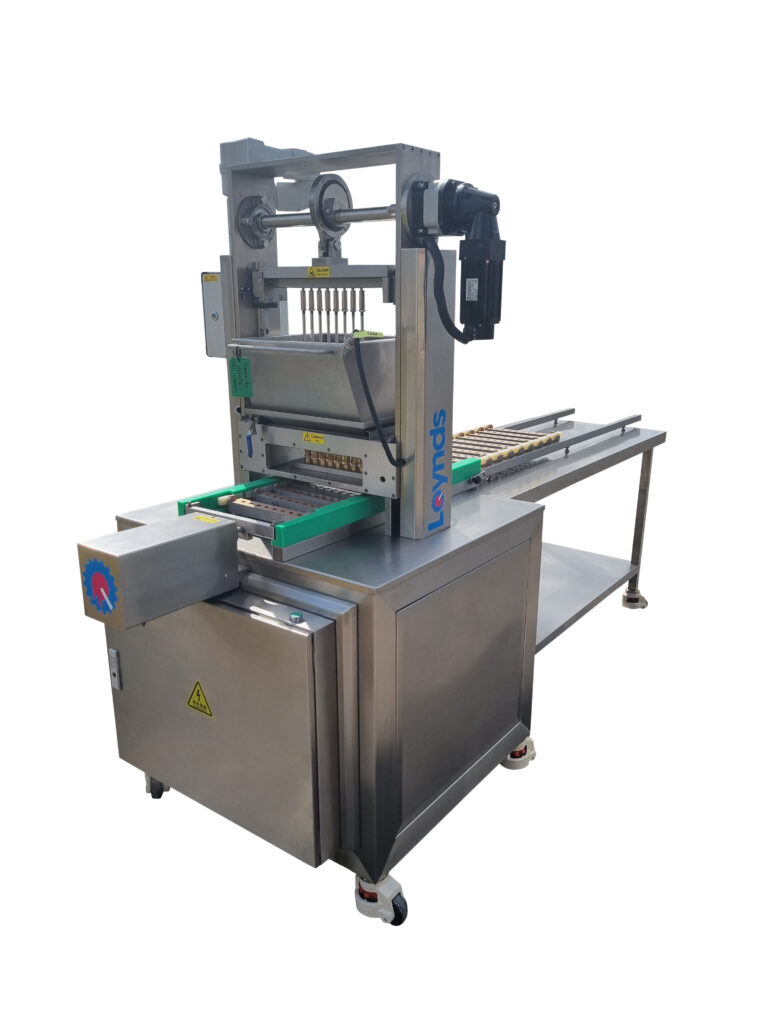

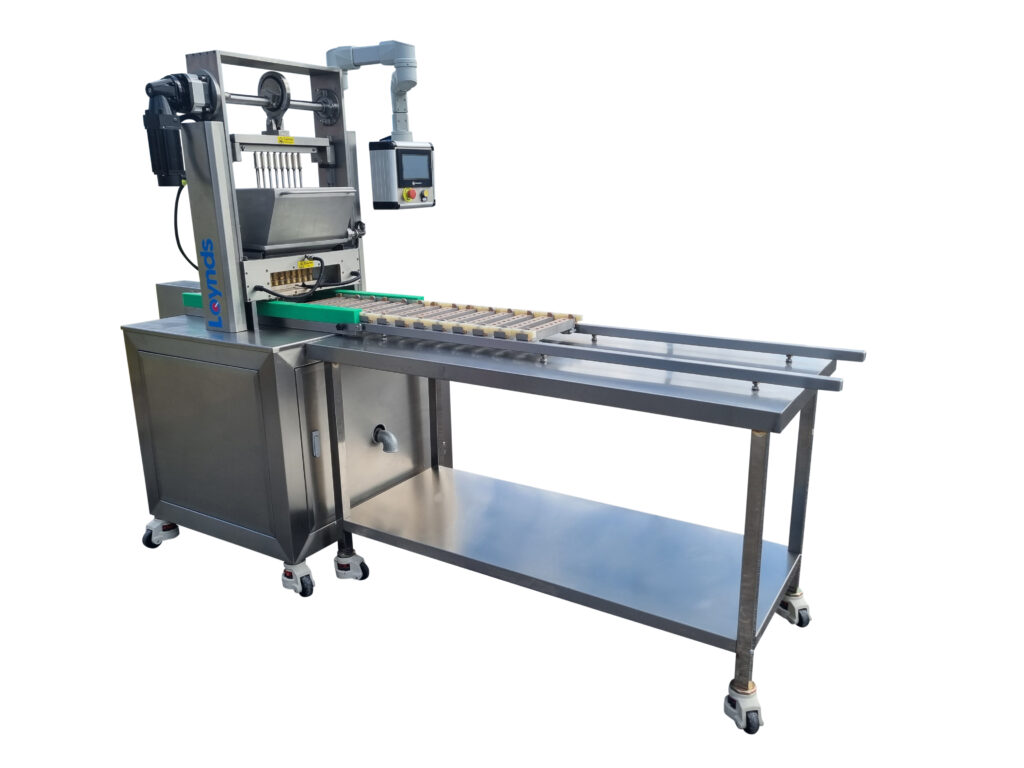

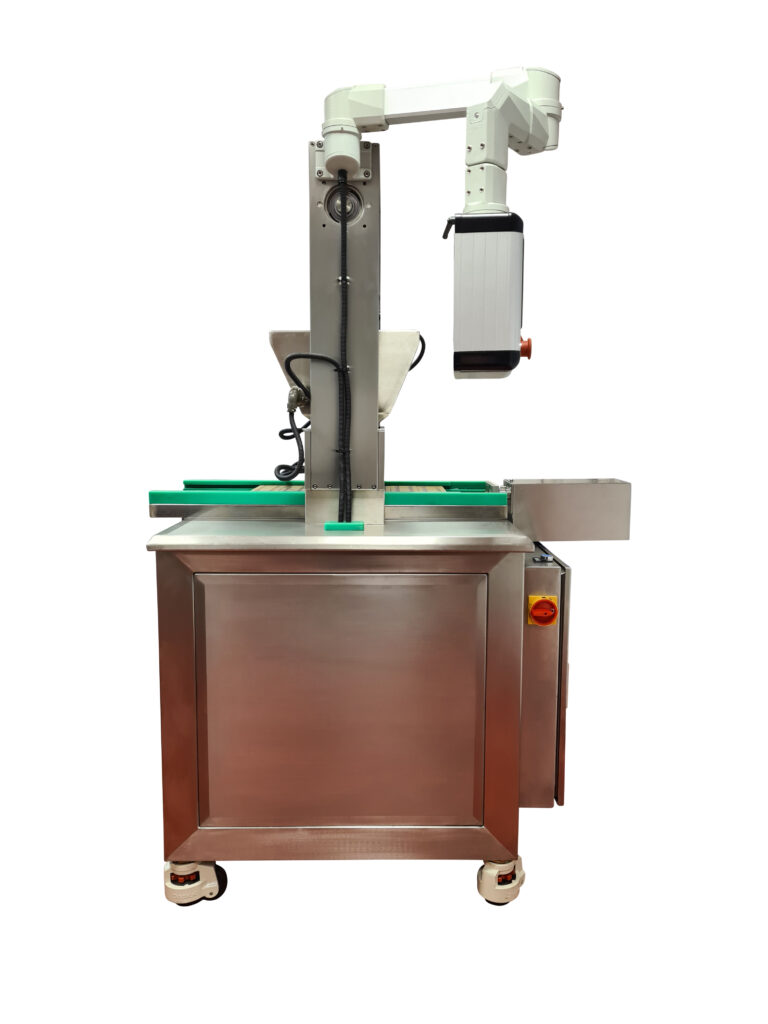

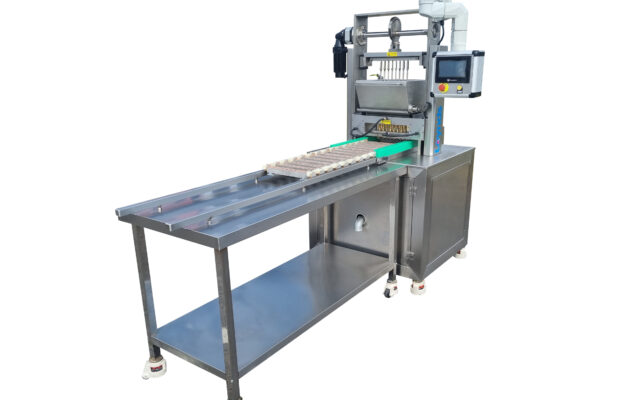

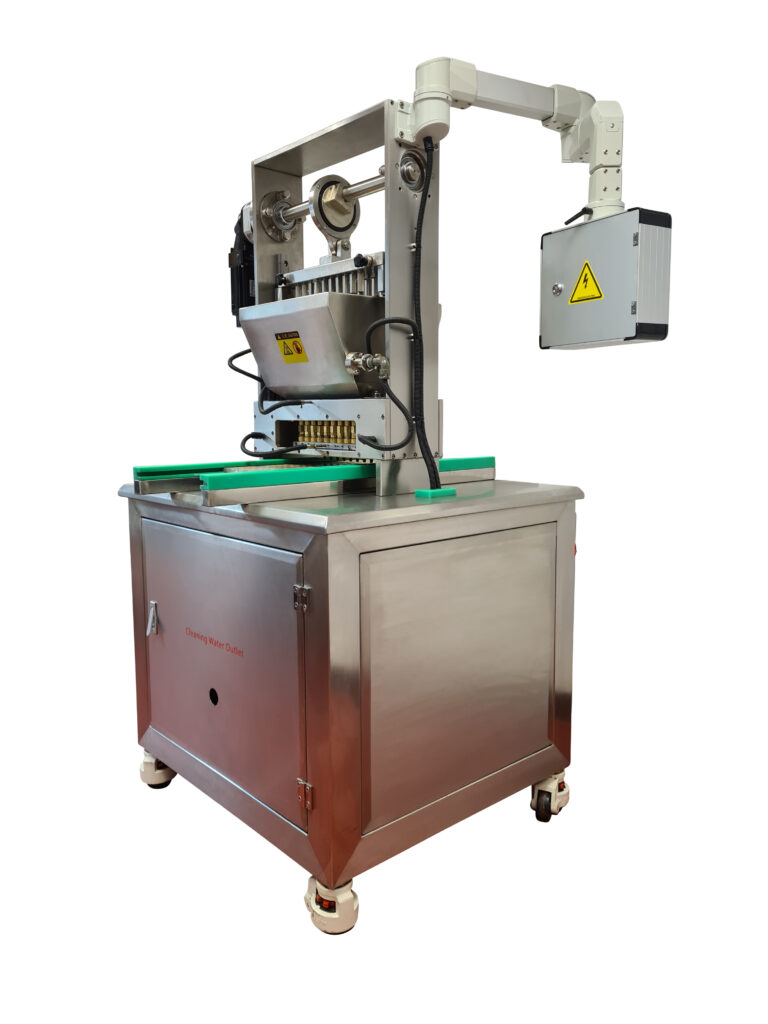

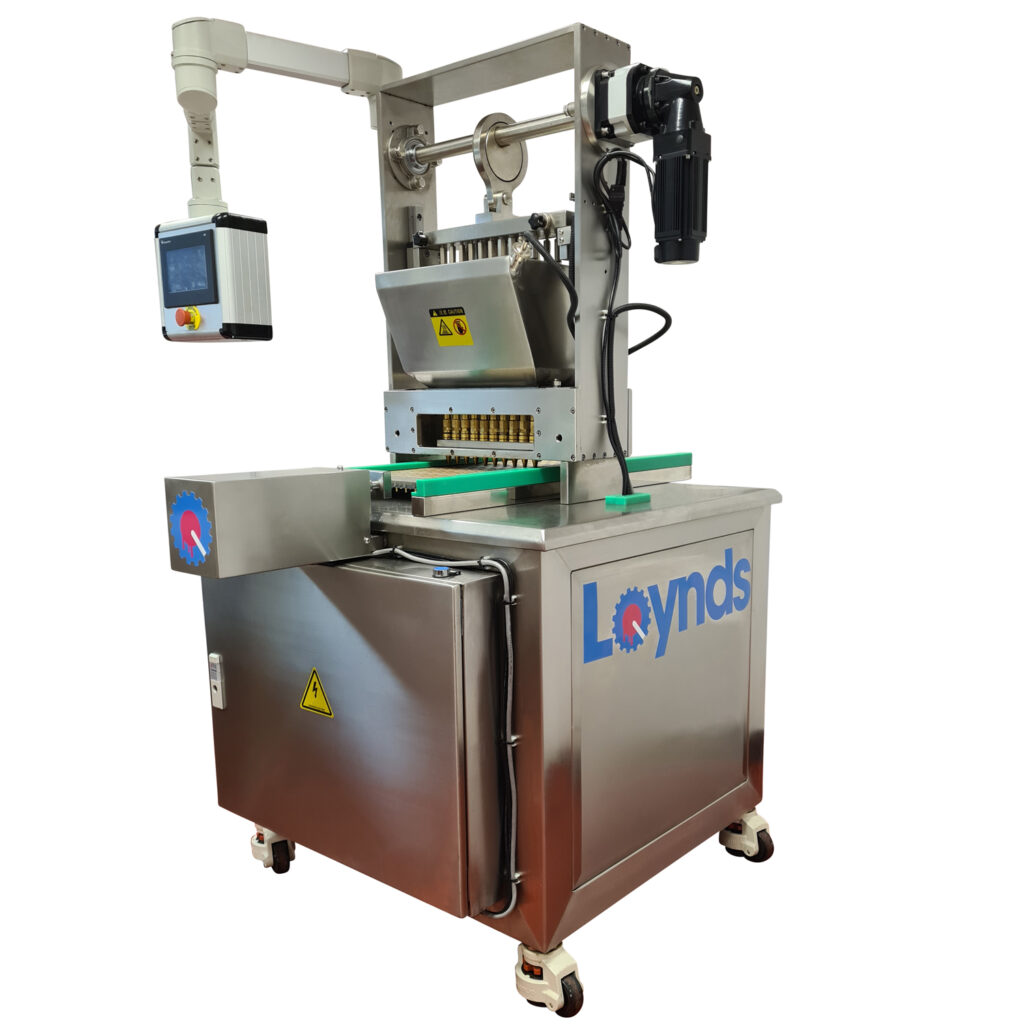

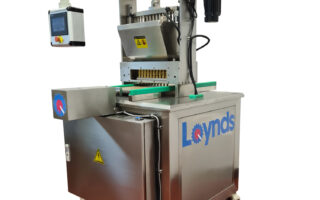

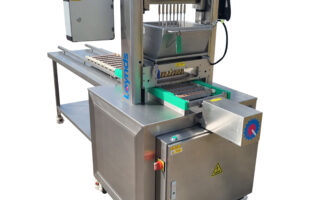

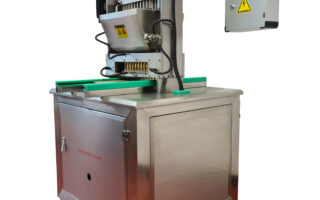

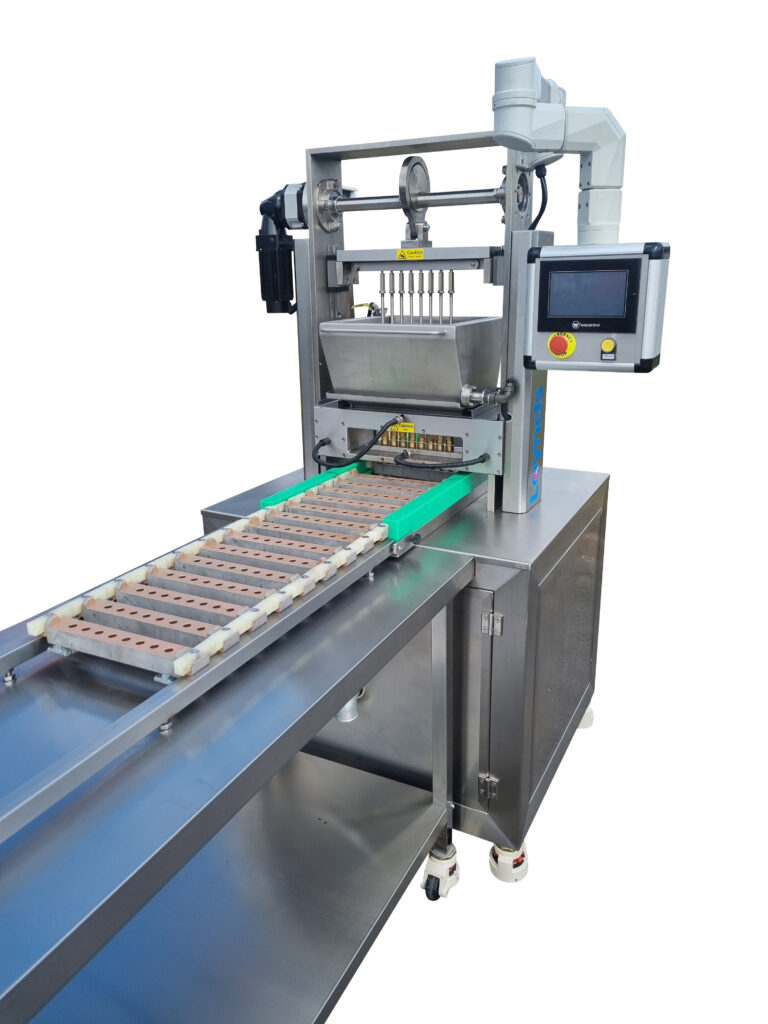

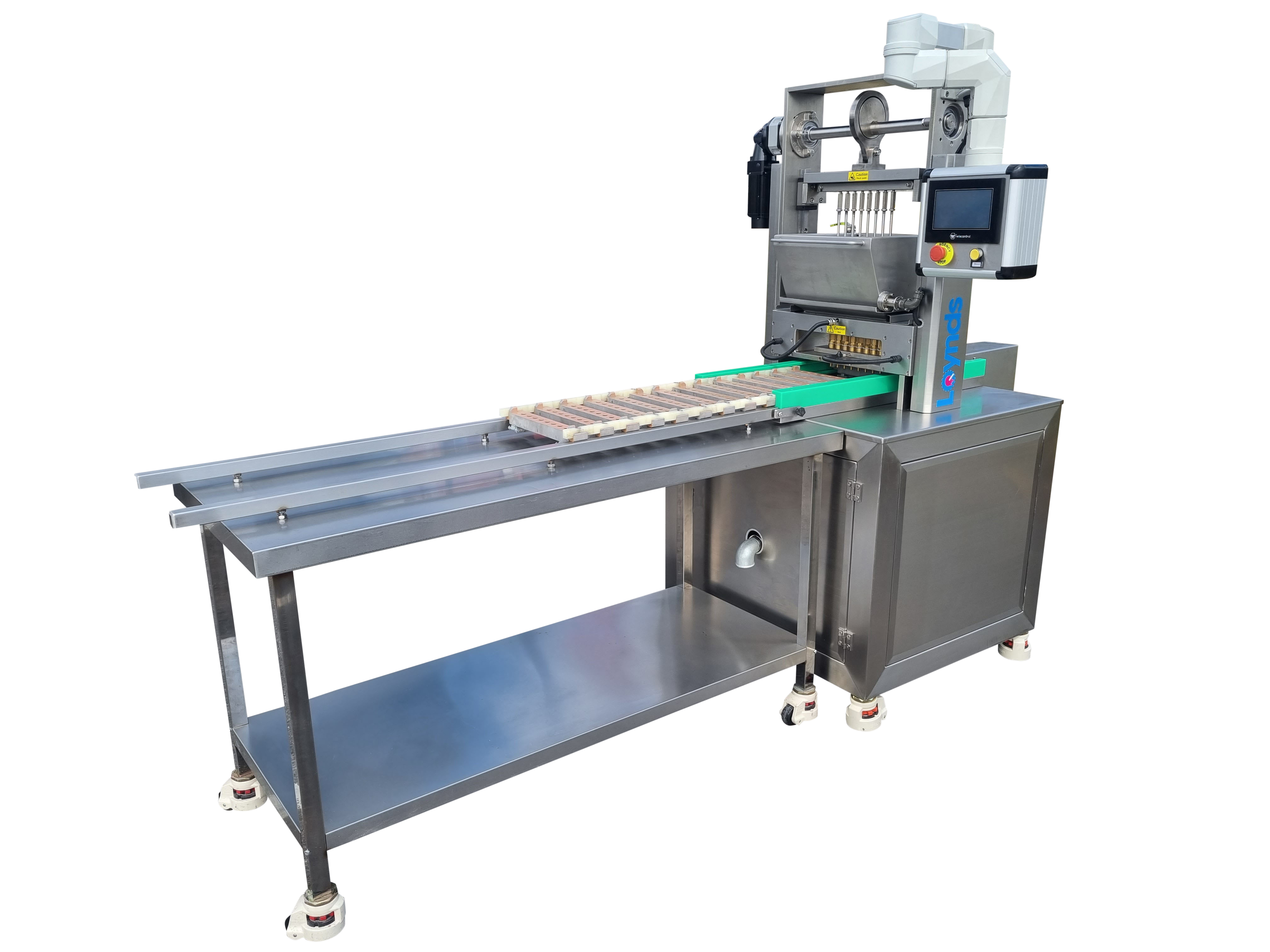

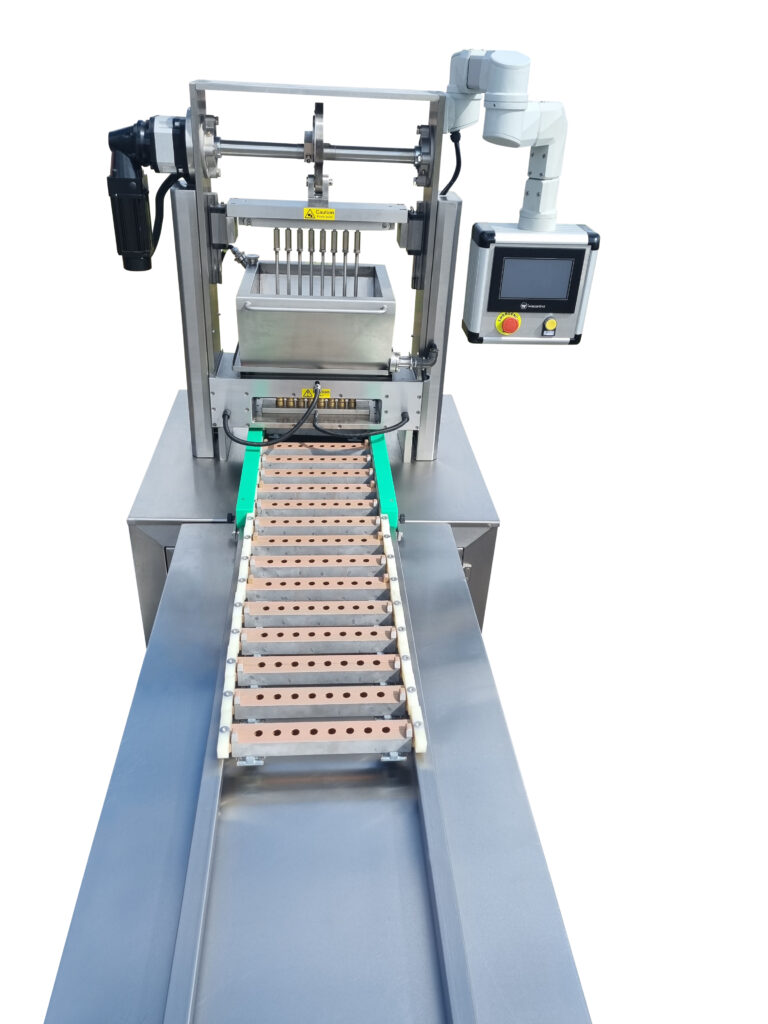

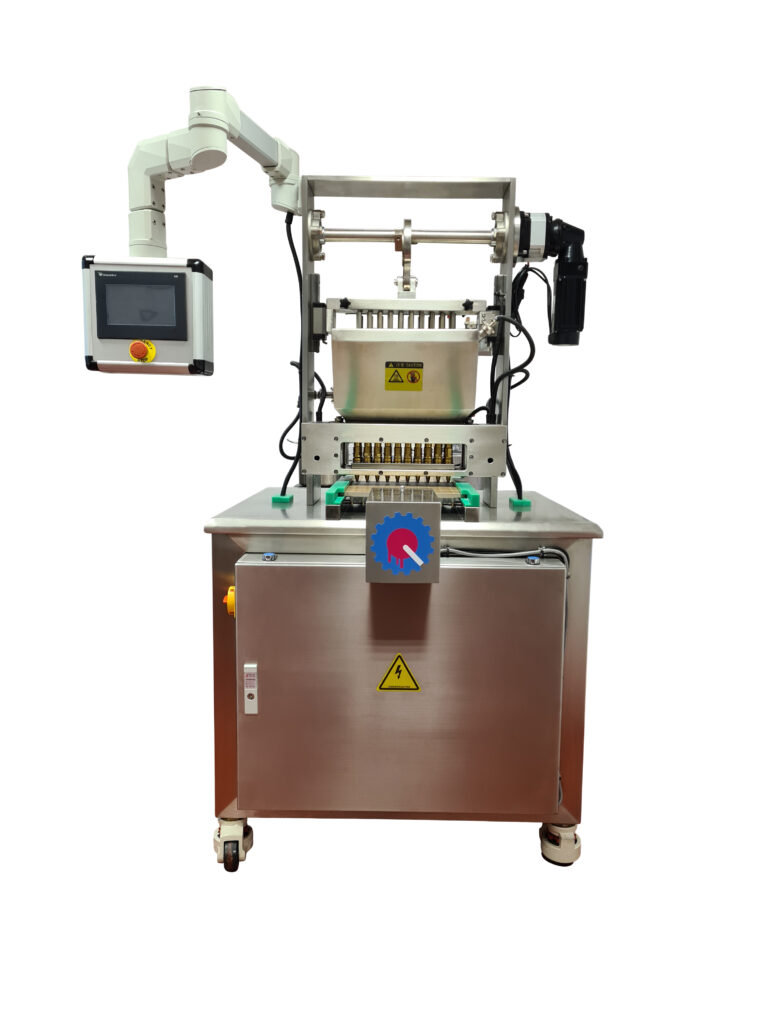

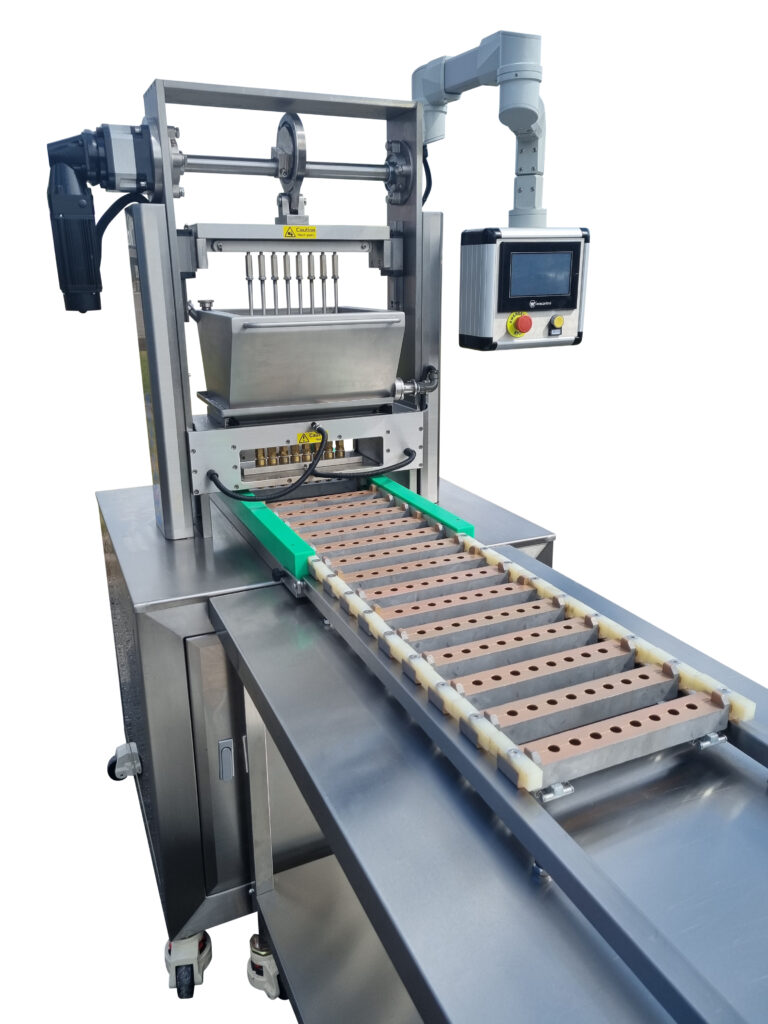

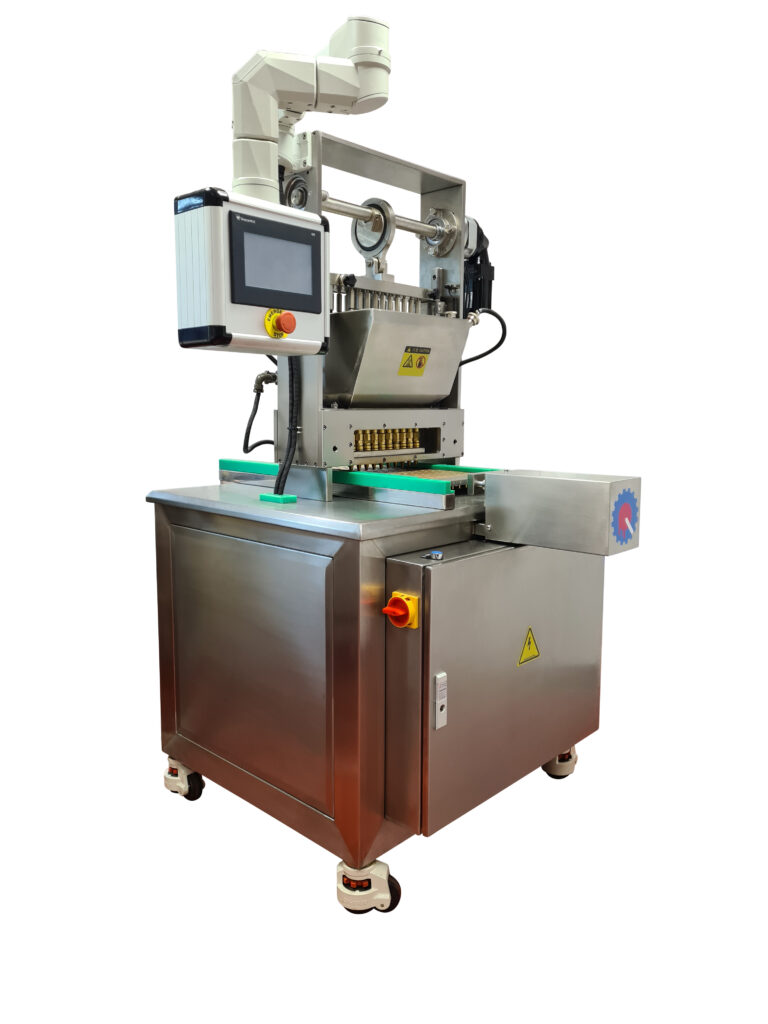

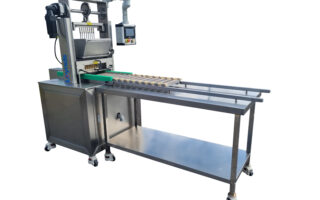

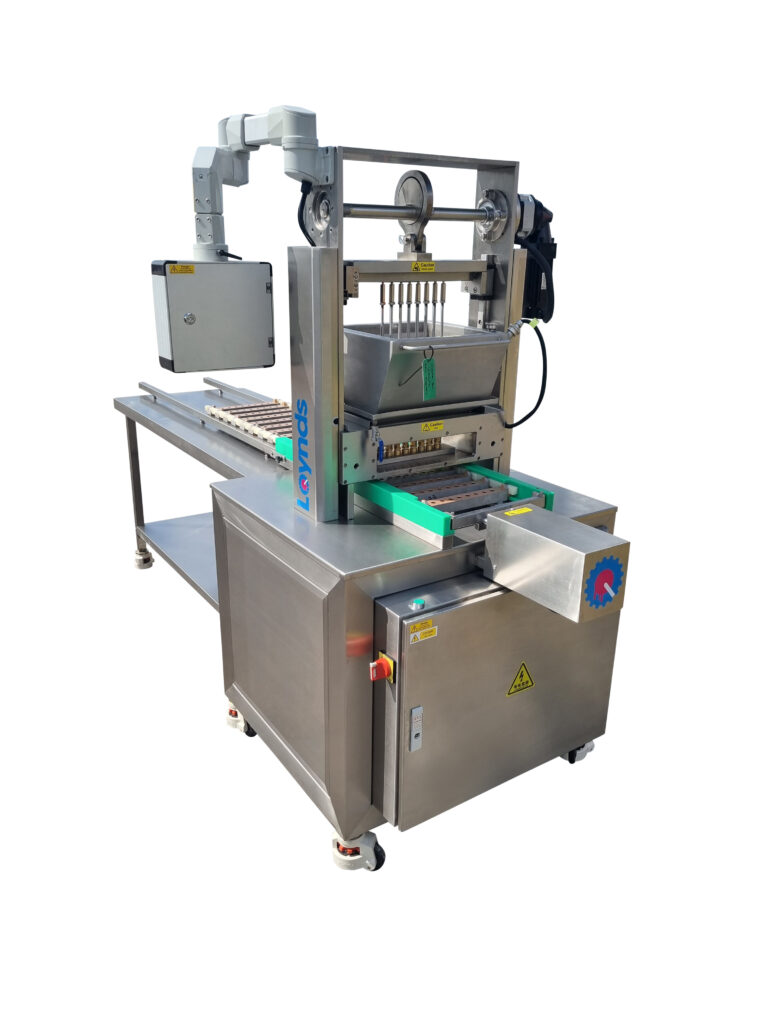

Laboratory Candy, Jelly & Caramel Depositing Machine – CD05

Compact depositing machine designed for manufacturing a variety of confectionery products such as Jellies, Gummies, Hard Candies, and Caramel. Ideal for low to medium volume manufacturers and recipe development kitchens.

Built in China & UK

Interested?

Call: +44 (0) 1253 882 961
E-Mail: sales@loynds.co.uk
for more information.

Get Quote

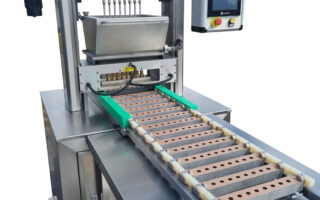

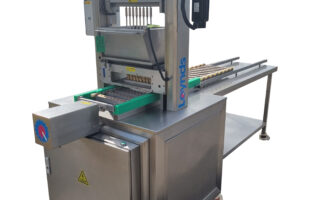

The CD05 Depositor Machine is compact, & versatile, engineered for manufacturing an array of confectionery products, including Jellies, Gummies, Hard Candies, and Caramel. Due to its ability to provide accurate dosing the machine is particularly suitable for CBD, THC, and Vitamin-infused products, making it an invaluable asset for both small to medium manufacturers and recipe development kitchens.

Features

  • PLC Control: Enhanced automation and precision.
  • Mobility: Mounted on wheels for easy transportation.
  • User-Friendly: Simple touch screen HDMI allowing control of all parameters
  • Low-Maintenance: Designed for easy upkeep.
  • Output is approximately 70kg per hour, subject to product size and configuration.

Operation

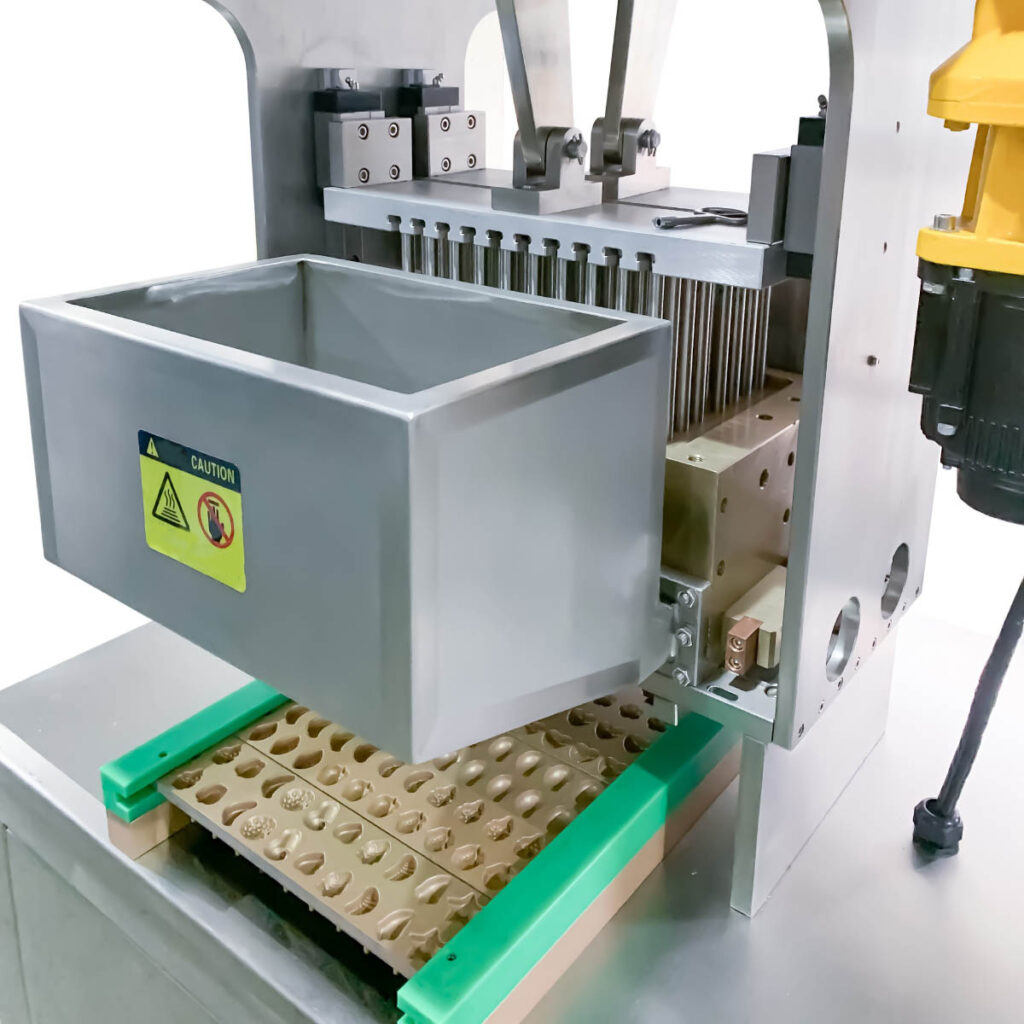

  1. Fill the hopper with your cooked product.

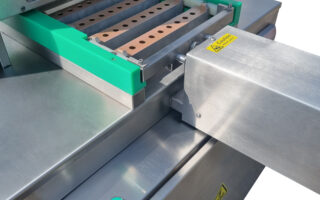

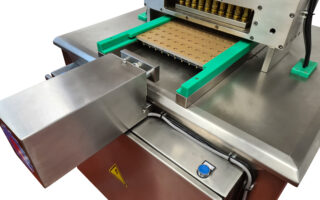

  2. Load moulds into the infeed section.
  3. Press the index button.

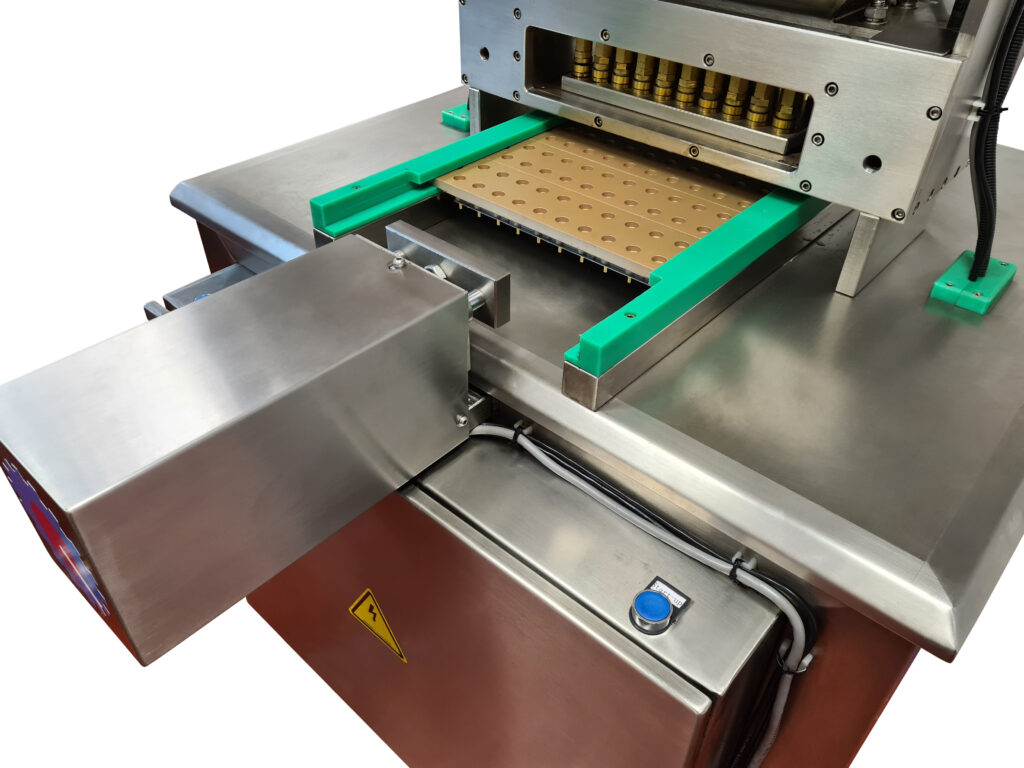

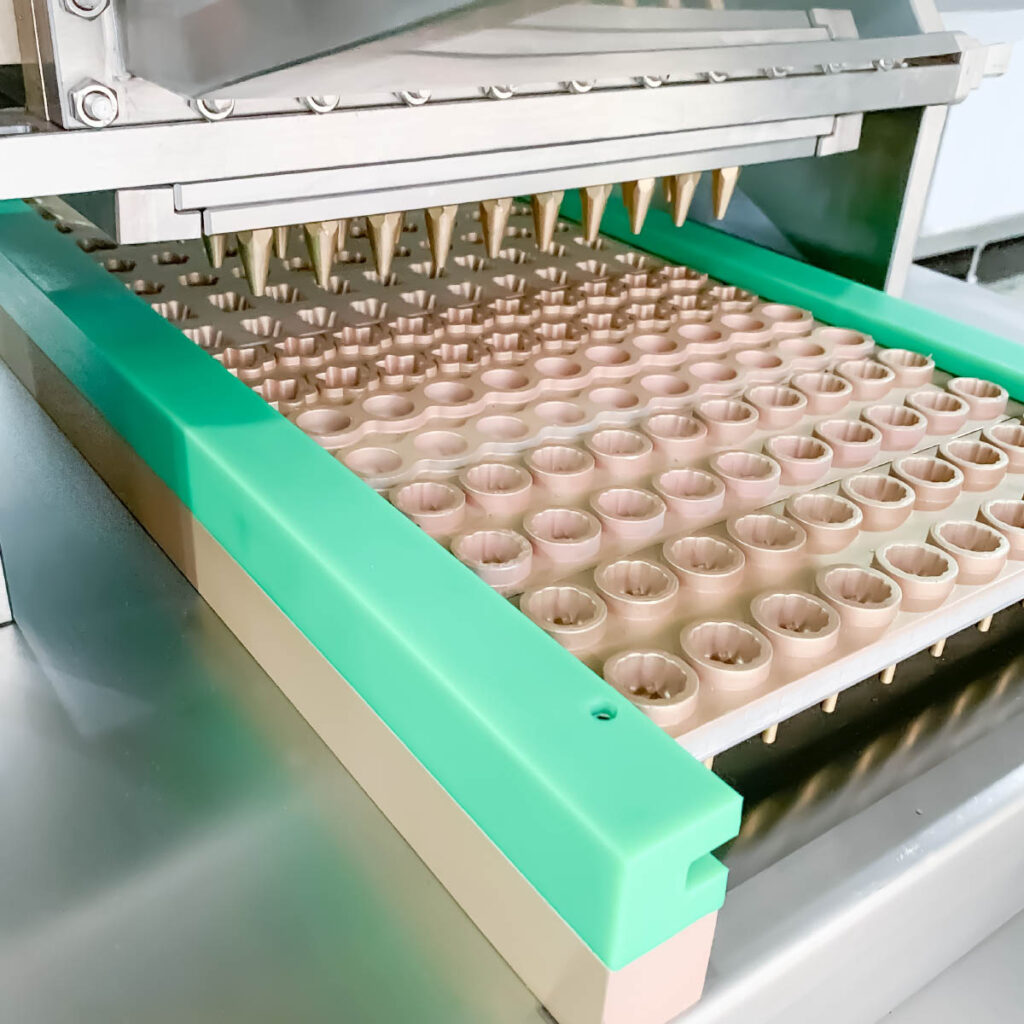

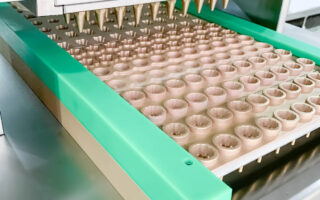

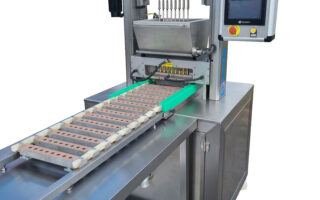

  4. The mould will be pushed underneath the depositing head and mould cavities will be filled with your product.
  5. Press the index button.

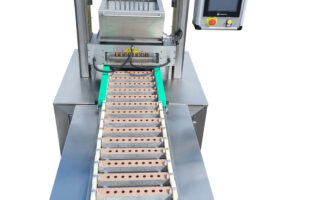

  6. The mould will be pushed into the outfeed and a new mould pushed underneath the depositing head.
  7. Remove the moulds from the machine and place somewhere to cool.
  8. Demould.

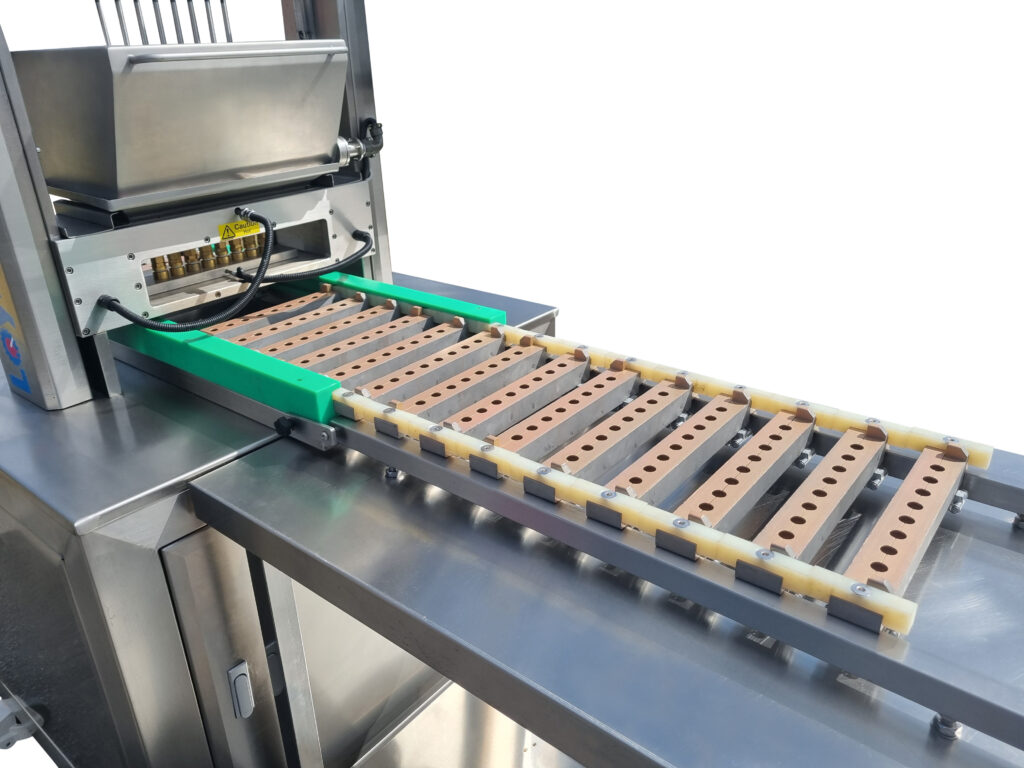

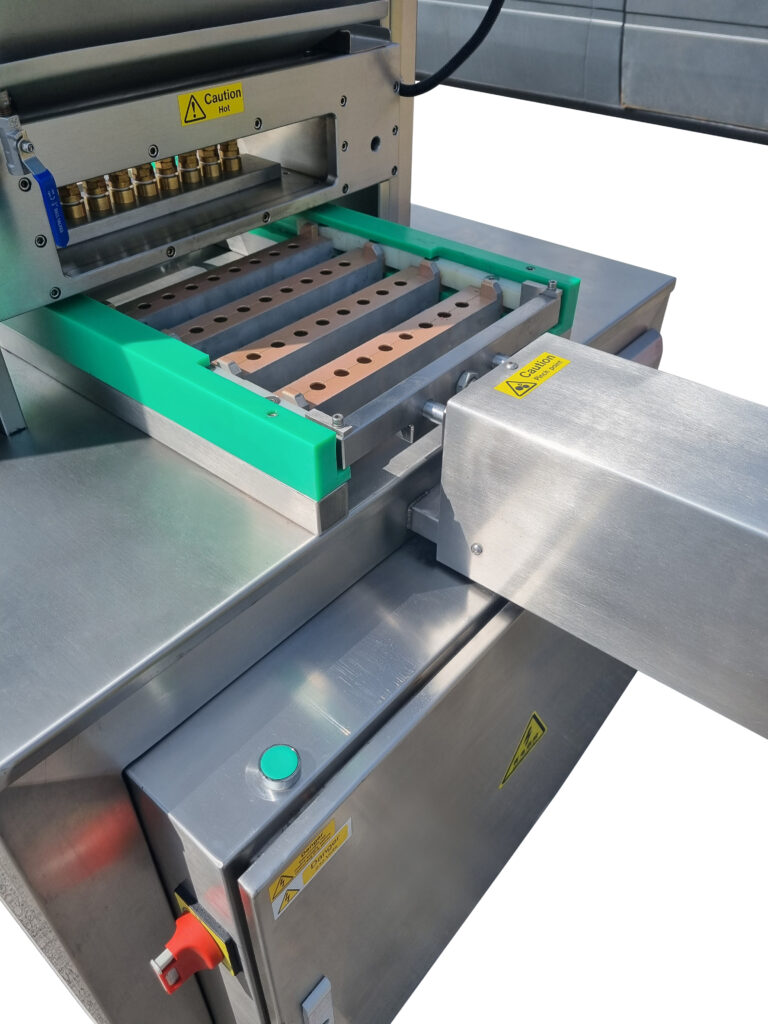

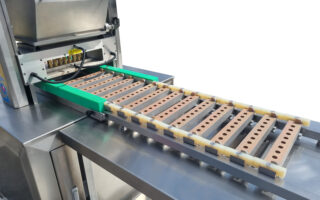

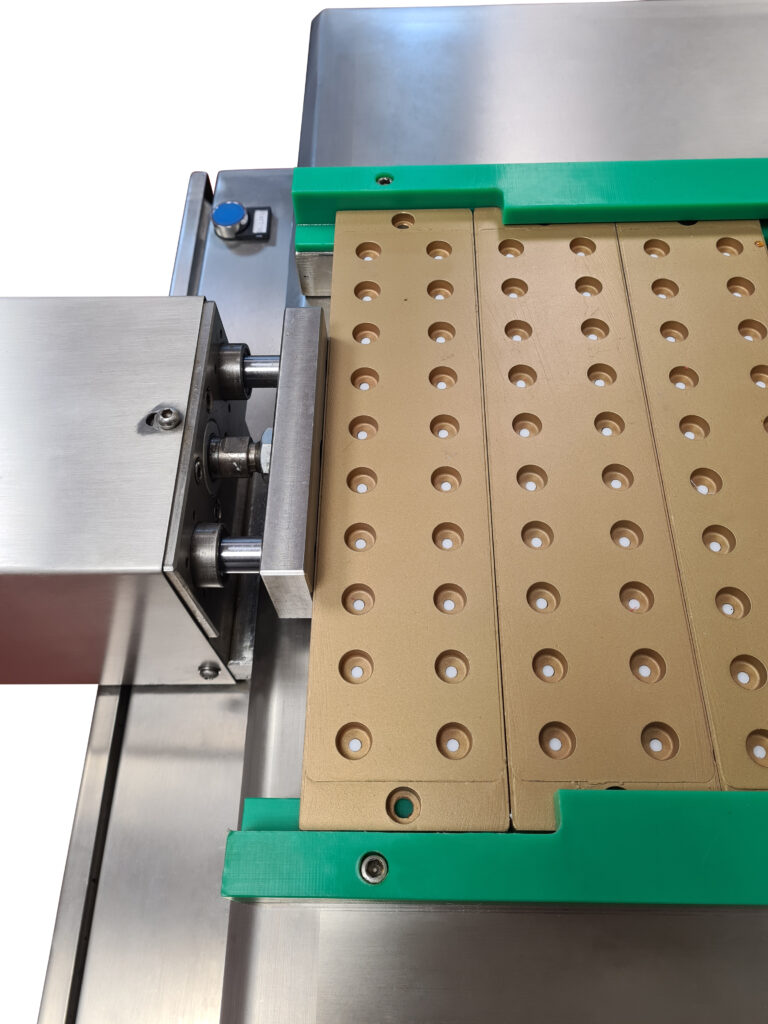

Multiple Mould Compatibility

The machine accommodates Teflon-coated moulds and silicone moulds. We can also configure the machine to run with some mat type moulds. It can process 6-11 impressions per mould (Depending on sweet size) and has an average throughput of 6 to 14 moulds per minute. Custom-designed 3D Ball Lollipop moulds are also available.

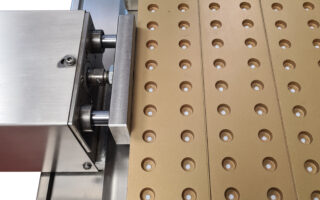

The Teflon moulds include demoulding pins on the bottom. When these are pressed in the pin will force the product from the mould. The lollipop moulds open on a hinge for demoulding.

Specification

  • Capacity: Up to 70kg per hour – Subject to product size and configuration.
  • Overall Dimensions: (L)1050mm x (W)1050mm x (H)1600mm
  • Weight: 450kg
  • Material: Food-Grade 304 Stainless-Steel
  • Electric Consumption: 4kW
  • Products: Hard & Soft Candy, Jelly, Toffee and Fudge

Options

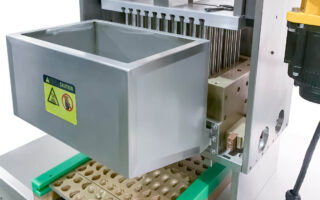

  • Hoppers: Single or Double available
  • Various nozzle configurations can be purchased for customised designs such as stripes and multi-coloured candies.

Installation & Support

The candy depositing machine is accompanied by a video guide, addressing operation, hygiene, and routine upkeep. These videos are designed to expedite the initial configuration process, facilitating immediate usage of your newly acquired machinery.

For those in need of more extensive guidance, we provide optional add-ons such as on-site installation and training programmes. Additionally through our network of recipe consultants we can offer expertise in recipe formulation and specialised training for confectionery production.
