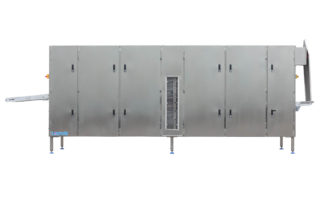

Multi Tiered Cooling Tunnel

Cooling tunnels are used for bringing the product down to a lower temperature after moulding. Providing quicker cooling than at ambient temperature, the product can be demoulded sooner and results in an overall faster turnaround of product in your production line.

Built in China & UK

Interested?

Call: +44 (0) 1253 882 961
E-Mail: sales@loynds.co.uk
for more information.

Get Quote

Cooling tunnels feature:

  • Independent and multi-layer structure.
  • Making full use of space, shorten 2/3 of conveying length
  • High cooling efficiency, energy conservation: Reducing 50% working time of refrigeration unit
  • High quality oriented materials: Smooth and reliable transportation, no noise

2 Segment Cooling Tunnel
For decorated materials and colour sprayed products

Quantity of plates 40pcs
Refrigerating temperature ~5°C
Cooling capacity 5P
Speed ~12 moulds /min
Power 5.35KW
Dimension 2.30m x 1.00m x 2.55m



6 Segment Cooling Tunnel
For small-medium output

Quantity of plates 158pcs
Refrigerating temperature ~5°C
Cooling capacity 10P
Speed ~12 moulds /min
Power 11KW
Dimension 6.30m x 1.00m x 2.40m



8 Segment Cooling Tunnel
For large output

Quantity of plates 252pcs
Refrigerating temperature ~5°C
Cooling capacity 15P
Speed ~12 moulds /min
Power 14.7KW
Dimension 8.30m x 1.00m x 2.40m
