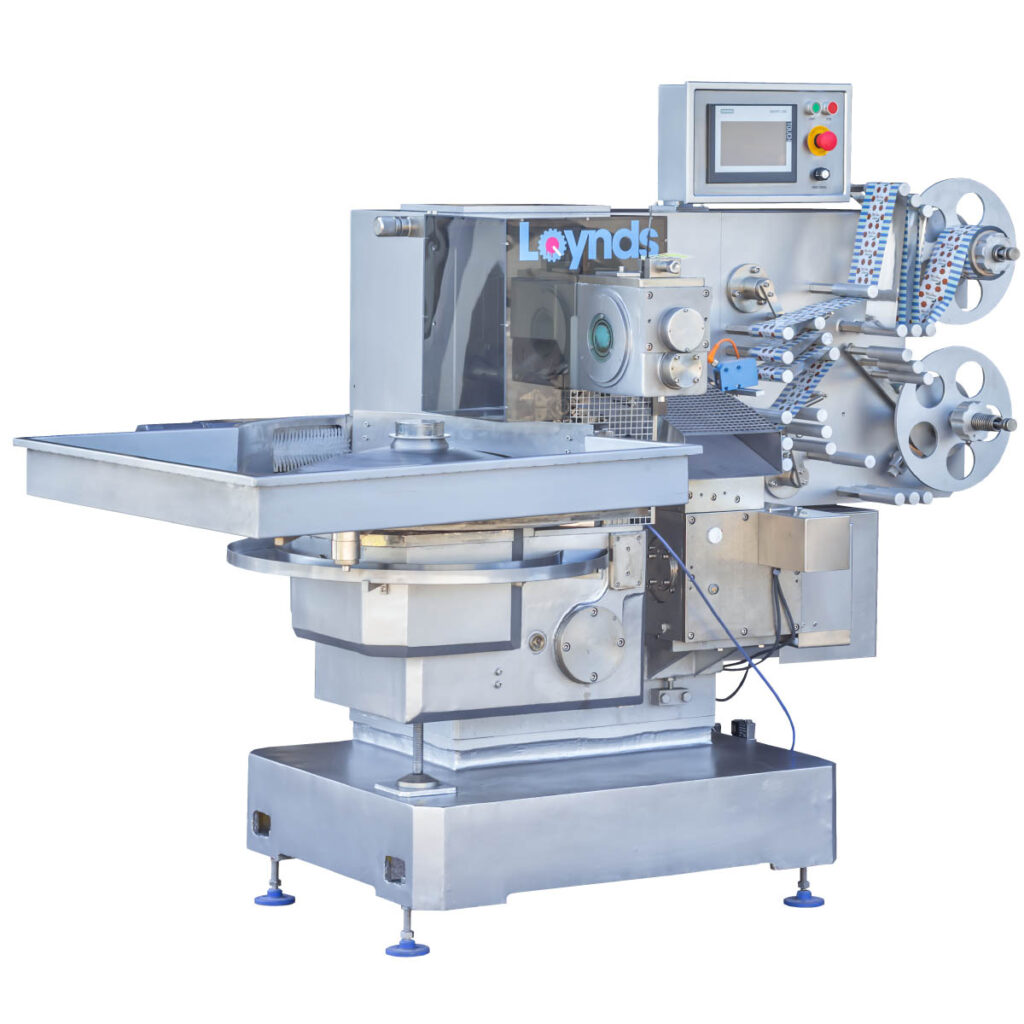

The TW03 Hand Feed Double Twist Wrapping Machine offers a versatile approach to wrapping a diverse assortment of confectionery products, from high boiled sweets to fudges, chocolates, caramels and toffee. Product is fed into the feed plate manually by an operator.

Specifications

• Product Dimensions: Can wrap products with dimensions:
  Length : 12-34mm
  Width : 12-34mm
  Diameter : 6-20mm
• Speed: An operator can typically feed up to 200 pcs/min for ball shapes and up to 80 pcs/min for square shapes. Max capacity of 450 pcs/min.

Suitability

This hand-fed model is ideal for products that don’t feed well automatically.
The machine is supplied with a custom feed plate to accommodate your product. Multiple feed plates can be supplied allowing the machine to wrap a range of different items.
The machine is primarily designed for packaging of confectionary products that have been moulded, deposited or die formed. It can handle items that are both solid or centre filled.

Safety Features

• An electronic interlock with a magnetic safety switch ensures operational safety. If the guard is lifted during operation, the machine automatically halts.
• Lockable Isolator
• Emergency stop button

Additional Features

• Double paper feed reel holder for quick reel changeover.
• Print registration device to align printed film onto the wrapped product.
• Air-assisted paper feed system.
• Optical sensor for ‘no product, no film’ detection to save paper.
• Lexan clear guards for enhanced operator safety.
• HMI control system
• Wrapping film length is changed by a keypad and stepper motor.
• Self contained lubrication system.

Looking for More Automation?

For a more automated solution, consider our Vibratory Feed Double Twist Wrapping Machine.
