- This equipment has been designed by Loynds product development team.
- All components and parts are sourced from carefully vetted UK suppliers, or manufactured in our own factory.
- Machinery is assembled and thoroughly tested in our UK facility to strict quality guidelines ensuring premium quality and long-term reliability.
- Before completion we invite all customers to see their equipment running and where possible with product.
- Once the machine has passed all our quality checks and been signed off by the customer we can ship, install and train your staff.
- Be assured, we are always here to help, supply spares and provide technical knowledge for the lifetime of your equipment.

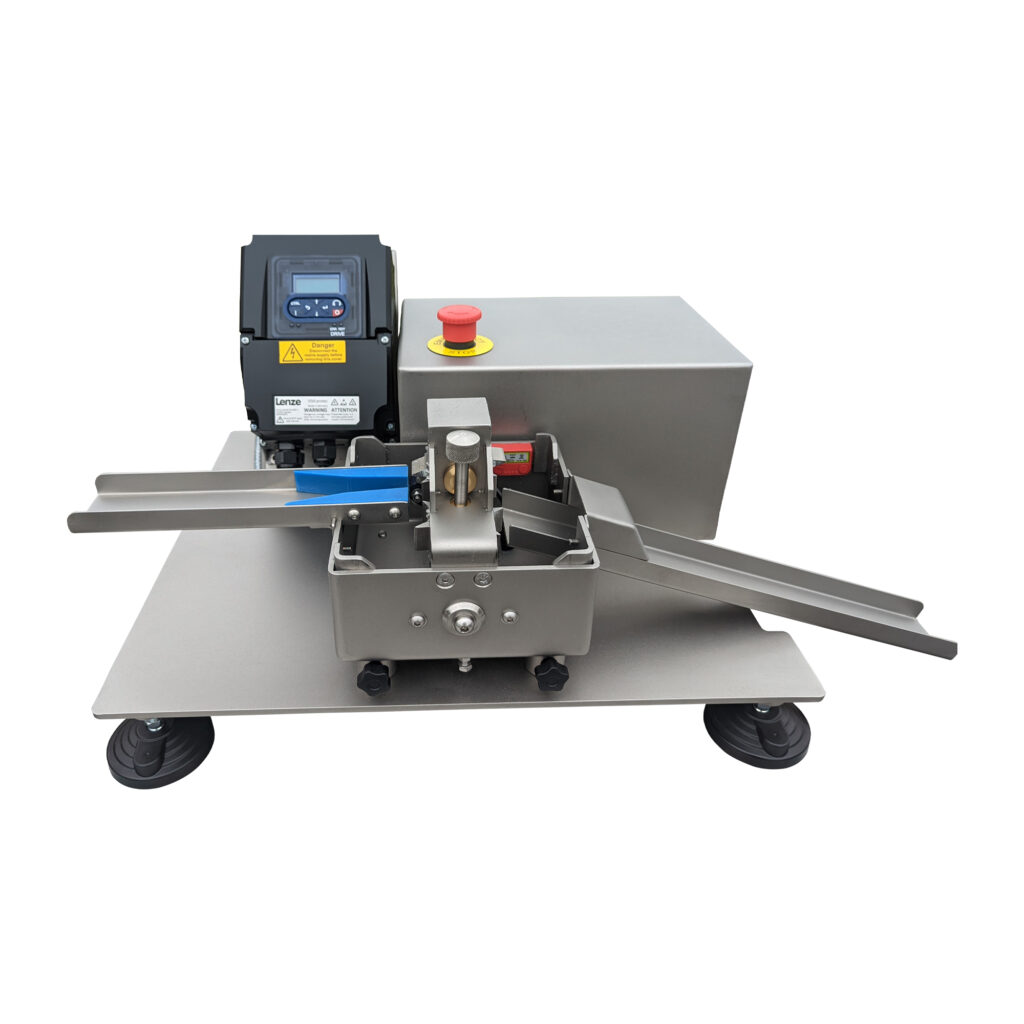

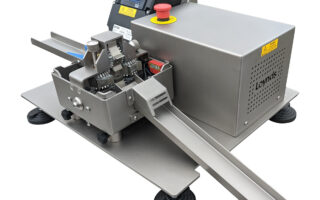

Introducing the Mini Humbug/Berlingot Machine, your ultimate solution for artisan candy manufacturing. Choose between the hand-turned model HB01 or the motor-driven HB02 for more continuous candy production.
Designed and Built in UK
×
Designed and Built in UK
Interested?
Call: +44 (0) 1253 882 961
E-Mail: sales@loynds.co.uk
for more information.
How it Works
To operate the Mini Humbug/Berlingot Machine, simply feed a rope of candy into the designated in-feed section. As the machine’s 4 beveled cutting gears rotate they simultaneously pull the candy rope into the machine and cut it into humbugs. The result is a chain of perfectly formed Humbug or Berlingot sweets with the trademark tetrahedron shape. Once cooled, these can be easily broken up into individual candies.
The humbug machine is designed for table-top use and comes with a secure clamping device to prevent movement during operation. For installation, simply drill the clamp into your table surface, allowing the machine to be stably affixed.
Maintenance and Cleaning
Maintaining the Humbug / Berlingot machine is a straightforward process due to its user-friendly design. Engineered for ease of use and minimal upkeep, no specialised skills are required to maintain the machine effectively. The design eliminates the need for tools wherever possible, allowing for swift and efficient removal of components for cleaning such as the cutters.
Installation and Support
The humbug machine comes with a detailed video manual that covers every aspect of operation, cleaning, and essential maintenance. These instructional videos aim to simplify the initial setup, ensuring that you can start using your new equipment without delay.
Should you require further assistance, we offer additional services including installation and training packages, as well as support in recipe development and specialised training in candy manufacturing.
Features
- Motor Driven Humbug Machine Capacity: up to 100kg per hour
- Hand Turned Machine Capacity: up to 20kg per hour
- Outer body is in full 304 stainless steel construction
- Cutter are manufactured from 304 Stainless Steel
- Can be supplied hand turned or motor driven
- Supplied with clamp for fixing the machine down to your table top
- Motor Driven Machine Dimensions – (L)710mm x (W)460mm x (H)340mm
- Hand Turned Machine Dimension – (L)623mm x (W)220mm x (H)200mm
- Power HB01 (Hand Turned) – NA
- Power HB02 (Motorised) – Single Phase
- Product: Hard Candy
