An automatic machine for forming, cutting and double twist wrapping hard or soft candy, toffee and gum products at up to 450Pcs per minute
Built in China & UK
×
Built in China
Interested?
Call: +44 (0) 1253 882 961
E-Mail: sales@loynds.co.uk
for more information.

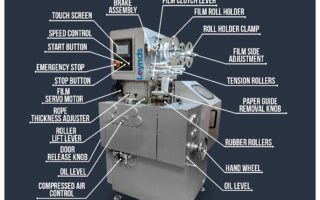

The Loynds CW02 is a high-speed cut and double twist wrapping machine. It can produce and wrap squares, oblongs, cubes and log shaped pieces and it will wrap them in a double twist wrap style.
Why Choose the Loynds CW02?
- Versatility at Its Core: Whether you’re producing toffee, fruit chews, bubble gum, or high-boiled sugar candies, the CW02 is capable of manufacturing them all.
- Tailored to Your Production Line: We custom-build to your preferred candy size and shape. The machine is designed to run seamlessly with your Batch Roller/Rope Sizer or extruder.
- Efficient Design: Optimized for low maintenance and ease of operation, the CW02 is built for durability and consistent performance.
- Intelligent Operations: An advanced PLC system ensures minimal wrapper wastage, synchronizing paper feed with product flow perfectly.
- Precision Wrapping: Equipped with photocells for exact print registration, the CW02 ensures each piece is wrapped to perfection.
Technical Specifications:
- Variable Speed Control: 0 – 450Pcs per minute
- Customizable Size Format: The machine is manufactured to your size format. Change parts can be supplied for multiple sizes
- Power Consumption: Operates efficiently at 3.5kW.
- Dimensions: (L)1440mm x (w)1185mm x (H)1810mm.
- Weight: 1300kg.
- Wrap Styles: Double Twist
- Tripe film roll holder: for products with a double wrap and for quick changeover
- Products: Toffee, Fruit Chews, Bubble Gum, or High-Boiled Sugar Candies
- Material: Cast Steel, Painted Contact parts food grade steels.
Operation Sequence
Your confectionery rope (typically supplied from a batch roller and rope sizer) enters our CW02 machine, passing through a set of sizing rollers that shape the piece to its final width and thickness. A sensor detects the rope, cueing the PLC to initiate the precise paper feeding. A servo motor cuts the paper to length, readying it for the wrapping wheel where the confectionery is enveloped in a ‘fold wrap’ style wrap. The wrapping film is sealed with a heated plate which is pressed against the wrap.
Alternative Model
We also supply a cut and fold wrap machine.
