Fudge – Caramel – Nougat Cutting Machine – FC01

Cut batches of fudge, nougat, caramels and other food items into oblongs, squares and bars.

Designed and Built in UK


Call: +44 (0) 1253 882 961
E-Mail: sales@loynds.co.uk
for more information.

Get Quote

The Loynds FC01 is a specialised fudge and caramel cutting machine, designed to efficiently slice batches of fudge, nougat, caramels, and other soft food items into various shapes including oblongs, squares, and bars. This food processing equipment can accommodate maximum batch sizes of 480mm x 480mm and operates at speeds of up to five batches per minute.

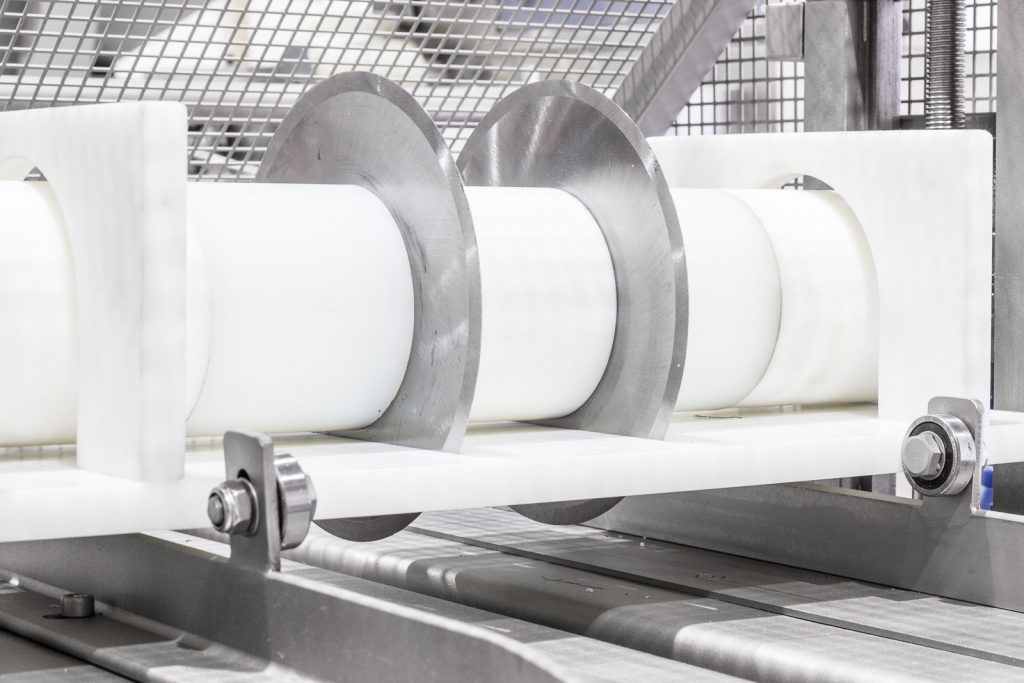

Cutting Mechanism

This rotary blade cutter is ideal for slicing slabs of fudge, caramels, nougats, and more. It features a dual set of rotating blades, capable of transforming your product into cubes, oblongs, and bars with precision.
The blade configuration is customised to your product requirements. This allows you to select the final shape of the cut product.
Multiple blade banks can be supplied for customers who need to cut a range of different sizes.

Operational Workflow

The fudge cutting machine employs a centre chain conveyor that moves a food-grade nylon tray through the cutting process. Your product is loaded onto this tray, which is then automatically fed through the first set of rotating blades. The tray undergoes a 90-degree rotation before passing through the second set of blades, achieving a criss-cross cut.

Compatible with Various Products

The fudge cutting machine is compatible with various products and previous customers have used it to to cut the following:

  • Fudge
  • Caramel
  • Nougat
  • Cake
  • Flap Jack
  • Nut Bars
  • Marshmallow


  • Machine body manufactured from full stainless steel
  • Food-grade nylon tray accommodating a slab size of 480mm x 480mm
  • Versatile cutting shapes: oblongs, squares, and bars
  • Maximum operational speed of five batches per minute, subject to the product

By offering precision, speed, and versatility, the FC01 Fudge and Caramel Cutter is a valuable asset for any confectionery or food production line.


  • Capacity: Up to 5 batches per minute.
  • Weight: 1000Kg
  • Power: 3kW
  • Material: Machine body manufactured from full stainless steel.
    Product Tray manufactured from food-grade nylon.
  • Products: Fudge, Caramel, Nougat, Cake, Flap Jack, Nut Bars, Marshmallow
  • Dimensions: (L)2900mm x (W)820mm x (H)1100mm
